Benefits of HF Radio

HF Radio has been around since Marconi established transatlantic communications in 1901, and without his radios the Titanic tragedy almost exactly 100 years ago would have been even worse than it was. HF communications from the Titanic were picked up by mainland stations and many nearby ships although tragically they were not close enough to prevent the initial loss of life.

HF radio occupies the electromagnetic spectrum from 3 to 30 MHz and it’s still very popular for of communication today and with good reason. HF signals can carry effectively over huge distances, from hundreds to thousands of km, and occasionally around the world.

It was the low cost and simplicity of HF radio that provided the backbone for School of the Air communications services for more than 50 years and it still does for the Royal Flying Doctor Service, military forces and outback travellers emergency networks.

CB radios and mobile phones cannot provide the same outback communications capability although CB’s are useful in short range (eg convoy) situations and the Telstra NextG service is very useful near towns, railways and major highways.

RADIOS, ANCIENT AND MODERN

Modern radios can now provide a variety of communications services, such as email, SMS, telephone connections, Selcall and GPS position reporting, but the original principles of an HF radio are still embodied in radios from companies such as Codan and Barrett, with designs and technology that lead the world in HF communications.

If your radio doesn’t have provision for GPS position reporting, or just for increased peace of mind, taking an EPIRB with you will ensure automatic initiation of search and rescue services should you ever find yourself in “grave and imminent danger”.

New HF radios can cost up to $3,500 but since the principles of operation have not changed in 50 years, even secondhand radios up to 30 years old are still a very viable alternative. They are simple and reliable, and with the addition of a Selcall microphone, they can replicate many of the features of more modern radios.

A Codan 7727 of the 70's and 80's still doing sterling service

A Codan 8727, a later version but technically similar

A Codan 7727 with a remote control box

Current radios are microcomputer controlled with 100’s of channels programmed into them and a plethora of features, but fundamentally they do the same job now, and with the same transmitter power and communications range, as a 1970’s radio.

The HF-Radio.com.au store is a useful source of new and refurbished radios and information. Just ensure any radio bought has Selcall facilities.

MAKING CONTACT

A satellite phone, just like a home phone or mobile, can generally only be used to call a single recipient, whereas a call made on an HF radio can be heard by almost anyone whose radio is tuned to that frequency. And since there are just a few well established contact frequencies offered by various outback radio clubs (see table below), the chances are high that a call would be heard, probably by several listeners.

While this might not be considered very private, in an emergency situation, or if you need roadside advice, or to pass on a message to folks back home, this can be a blessing.
Few listeners would pass up a call for assistance or a request to relay a message or even just to chat with someone whose been traveling in a remote and lonely location for days.

Recently, the RFDS ceased monitoring the red Emergency Button fitted on the front panel of most radios and now only responds to Selcalls, so it's important that any radio used in the outback has Selcall capability, which most radios from the 90's onwards do have.

RFDS emergency telephone numbers are on the Flying Doctor website here (choose your state, they vary with location, except for 000 calls which are country-wide) and the RFDS has a close association with the VKS737 Australian National 4WD Radio network which can be used to call the RFDS via the HF radio Selcall sytem.

Useful articles on HF radio Communications are on the Exploroz website here and the Beadell Tours website here.

A REAL LIFE AND DEATH EXPERIENCE

From our blog, Thu 29 Sept 2011, in WA

When we awoke this morning and flicked on the HF radio, they were in the midst of a real life and death emergency.

A lady had made a distress call after her husband had had what appeared to be a serious stroke in their caravan in a national park north of Carnarvon in WA (semi-conscious, sweating and unable to communicate).

The VKS737 base operator called the emergency services who dispatched an ambulance to the site while he maintained contact with the lady and lead her though the emergency medical procedure to ensure the patient was given the appropriate first aid.

After about 45 minutes, the ambulance arrived to take over and the base operator then called their daughter working on a mine site in the NT to give her what info he could.

During this period all other regular skeds were deferred and the operator maintained contact with the lady to provide reassurance and support. It was a clear demonstration of the benefits of HF radio in the outback and just how critical it is that all members of the party know how to use the radio, not just the blokes.

Whilst this process fortunately worked on this occasion, the lady didn't know how to use the Selcall system (a bit like making a phone call which rings on your radio to alert someone that they are being called). Between sked times the HF bases are not monitored so a Selcall is the only way to alert the operator of an incoming call.

All Flying Doctor bases are also accessible directly though the VKS737 network using the Selcall system so it's vital that all HF radios have this facility and all party members know how to use it. Emergencies don't only happen between 9 and 5.

FAMILIARITY IS THE KEY

Using an HF radio regularly is a good way of keeping in touch with other people who are out there doing much the same as you are, but importantly, it also confirms, that your radio is working and will be ready if or when you have an emergency.

And because it might be you that needs help, ensure that all other members of your group, especially the younger members, are familiar with operating the radio, including erecting and connecting the antenna, choosing the right channel and making a Selcall. Check out this “Operating Essentials” document from the VKS737 network and the how to use the Sellcal system here (Doc 40).

If you don't have Selcall on your radio there is an App for iPhone and Android phones to generate Selcall tones for transmission via the microphone which might be a useful alternative.

Our radio is fitted with Selcall and we've tested it, but never had to use it in an emergency yet. I printed some simple Selcall instructions and emergency call numbers and stuck them near the radio so that anyone can operate it if necessary.

Making the first call can be a bit daunting but base operators are always happy to offer advice to people new to HF radio and it soon becomes second nature to them.

Outback HF Radio Clubs

VKS737 7 Channels, 14 Bases, some in RFDS bases.
HF Radio Club 9 Channels, 4 Bases
HFOZ 5 Channels, 3 Bases
Bush Telegraph 5 Channels, 4 Bases

Free Wheeling Hub Maintenance

Many Oka owners have AVM freewheeling hubs and several (including me) have had on-going problems with them.

Several times a hub has broken such that they either won't engage or disengage 4wd, (they just click as the wheel rotates), twice the fixing screws have come loose and once the outer hub has fallen off and disappeared completely leaving us without a 4wd capability.

So I've analysed how they work and what can go wrong, and considered what can be done about it to ensure you have 4wd when needed on an outback trip and 2wd when you don't. Some of this information may also be relevant to Warn and other makes of hubs (eg Superwinch) which probably work on a similar principle.

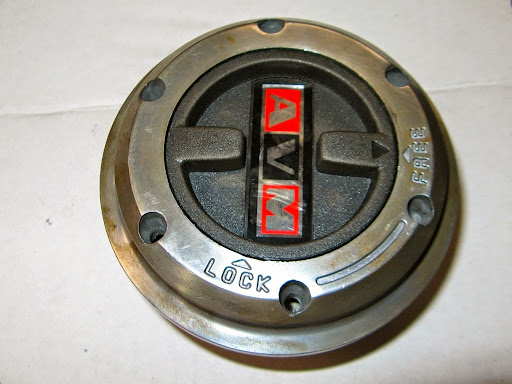

The AVM Model 439 Free Wheeling Hub for 30 spline shafts If you have SuperWinch Free Wheeling Hubs like this, you will probably also have the same problems. They look like rebadged AVM's and I know of one which is stamped with the same casting number, 439. The SuperWinch part number is 400439. AVM Hub Components

The AVM hubs comprise 2 main assemblies, an outer bolt-on assembly which contains the Free/Lock controls and a sliding locking ring, and an inner gear which engages the internal hub splines and drives the hub round and also holds the splined drive shaft roughly central.

Outer Assembly

The outer assembly comprises an aluminium outer frame, a plastic control lever, a grooved plastic cylinder, a large spring and a steel locking ring. It bolts on to the inner assembly via 6, 2 inch long countersunk socket head screws.

The locking ring and spring behind the outer assembly shown in the Lock (expanded) position

The locking ring is attached via a spiral spring to a plastic ring with 3 tangs on it to engage in the grooved cylinder and it's alignment is maintained by 2 thin roll pins inserted into the aluminium frame.

Inner Assembly

The inner assembly comprise a solid steel ring casting with external splines held in by a large internal circlip inside the hub, plus a central spline gear which is free to rotate but is held into the larger ring by a rear circlip. It is also held in by a circlip around the front of the central splined drive shaft.

The rectangular cams and gear teeth on the locking ring on the outer assembly on the left (shown in the retracted Free position) engage with the inner gear assembly on the right to lock the hub Warn use similar locking ring and fixing screw principles Hub Operation

When the lever is moved to the Lock position, the cylinder is rotated by the control lever and the tangs on the locking ring slide down the grooves. The spring expands pushing the locking ringing into the inner assembly, locking the splined central shaft to the outer hub by engaging the gear teeth and the ring of 6 rectangular cams.

The natural or fault position of the control is the Locked position and turning the lever to the Free position actually pulls the locking ring away from the inner gear. Indents on the grooved cylinder hold it locked or unlocked.

No maintenance is normally required, but if they are removed, cleaning the plastic surfaces and lightly oiling them will maintain smooth operation. Also oil the central splined gear where it rotates continuously inside the back of inner assembly.

Failure Modes

The inner mechanical components of the AVM hubs are solid and strong I have never had a problem or concern with the mechanics of its operation. If anything there ever broke it would indicate something far more seriously wrong with the stub axle/spindle or bearings than the free wheeling hub. However anything can break and I have seen the equivalent locking ring broken on Superwinch and Warn hubs.

The outer assembly is held in by 6 long 8/32 UNC screws into the inner assembly and these screws can come loose, since they have no locking mechanism, potentially causing the outer assembly to fall off.

Without outer assemblies fitted, the vehicle can only operate in 2 wheel drive as there is no locking ring to couple the splined shaft to the hub. [OK, with a diff lock, 3wd is theoretically possible].

The inner gear components are held in by 3 separate circlips so it's very unlikely they can come out in operation. They contain no plastic or weak components so it's a very strong mechanism.

The plastic control components in the outer assembly however are weak and poorly designed and it is these that are most likely to cause a failure.

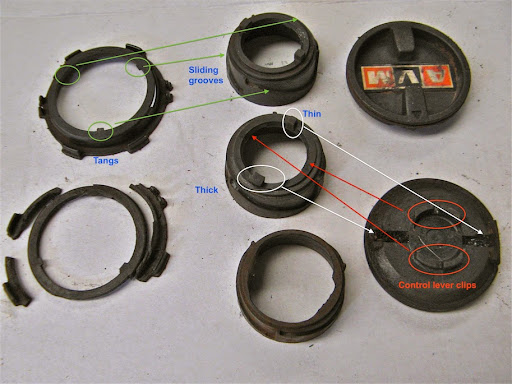

The plastic parts that can break. The ring with tangs, the grooved cylinder and the control lever

In my experience the primary problem is the tangs on the plastic ring which either wear away or break off. This leaves the hub either unable to engage or disengage 4WD, or, when one tang breaks off, the hub is left partly engaged and clicking as the wheel rotates. There is only a 90º turn in the control mechanism (unlike Warn's 325º) which puts a strain on the plastic tangs.

2 broken plastic rings. The top one is complete except for one broken tang. The lower one has all three tangs but the sides are shattered.

The grooved cylinder can also wear so the indents no longer keep the hub in the selected position and/or the clips on the inside of the control lever fail to hold the grooved cylinder so that control is lost. The hub may then become locked, even though the lever looks like it's in the Free position. This is a "fail-safe" situation (ie 3 or 4wd) but can catch you out if you are not aware of it. Where this is suspected, I turn the front drive shaft by hand until I know what's engaged or not.

I've addressed the problem of fragile components with AVM in Brazil and asked if there are stronger "plastic" parts or spares available and this was their response:

Dear Mr.Ribbans,

really the nylon pieces are the weakest of hub components and might last  just 6/7 years in standard conditions of use . We do not sell internal components to avoid installation faults and safety problems. Therefore we commercialize just the  service kit shown in the attached picture and the  nylon cap dial. Anyway please contact our local distributor at broach@donkyatt.com.au and ask him  if  can import the complete nylon set ( 3 pieces) . In that case we will do an exception for you  and supply it.

thank you

Export dep.

I've contacted Don Kyatt and they are looking into the availability of spares components.

The "service" kit (AVM #4.439) comprises only 2 sets of replacement screws, large O-rings and circlips for the inner hub and splined shaft, which is pretty useless.

AVM 4.439 Service Kit

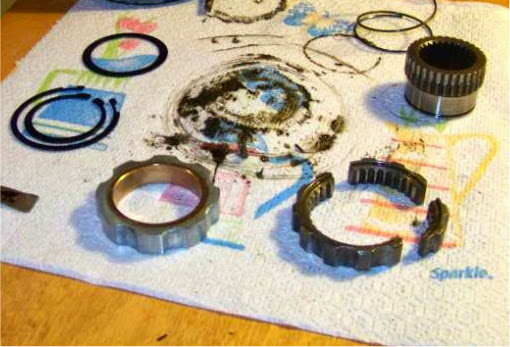

Faults on other makes of hubs

Although Warn is touted as a superior make, a brief search indicates there are cases of failures in their hubs too, but their problems seem to be mainly shattered locking rings rather than the control mechanism. The Warn locking ring appears to be slightly thinner than the AVM equivalent but has more cams.

What to do if a FW hub fails

In an outback situation, loss of 4wd is the most important consideration but can be easily prevented or rectified with a few precautions and/or some critical spares:

Firstly it is obviously preferable/essential that the the outer hub never falls off since it contains the all important locking ring, without which 4wd is not possible. (We were on a bitumen road to Melbourne when ours disappeared so it can happen at any time).

The outer hub is fixed by 6 screws which are 2 inch long (possibly 8/32 UNC) countersunk socket headed and deeply recessed into the aluminium frame. If they are over tightened or Loctited to avoid them loosening they can be very difficult to remove and I've had to drill several out. The heads are either small Allen sockets, which round off very easily, or Torx sockets which are easier to remove.

[Note: to remove a stubborn or rounded Allen head screw, you can hammer an equivalent sized Torx driver into the Allen socket to improve the grip, the sharp points cut their own shape. If you must reuse a damaged screw, cut a slot in the head first so a flat bladed screwdriver can be used for later removal].

Screws and the outer hub can be retained by several means (suggested by Oka Owners Group Members):

• Loctite the long fixing screws. This will work but makes their removal potentially difficult and might mean drilling them out.

• Put tape over the heads of the screws so they can't come out, or if they try too it's easier to spot.

Screw heads held captive by aluminium tape After removing the tape 9,000 km later, 2 screws were loose and this one would have fallen out, but for the tape holding them in. Fill in the holes above the heads of the screws with silastic. This will work but it's also potentially difficult to remove.

• Drill and re-tap the screw holes on the inner gear and aluminium frame to allow larger bolts and lock washers to be used with bigger Hex or Allen heads that you can actually get a spanner on. A short spacer will also be required to fill the countersink bore. Two larger bolts would probably suffice to retain the hub and M5 is probably the largest bolt size that could be fitted. M6 might exceed the space available and interfere with the internal circlip. These bolts could then be Loctited successfully since removing them is mechanically easier. This is probably most effective but invasive solution and doesn't affect wheel removal.

• Bolt a strip of steel/aluminium across the front of the aluminium frame to prevent it from falling off, and secure the strip on to the hub steps, if fitted, or to the hub using a large hose clip or even a large tie-wrap. However this might impede operation of the control lever.

• Fabricate a steel ring clamped to the hub (or use the step ring where fitted), with 2 or more claws welded around it which fit out and over the hub screws to retain them and the outer assembly. The claws will not impede access to the control lever and the ring can double as a non-slip step ring. A thin flat ring could be welded to the ends of the claws to retain all the screws and avoid them catching on passing flora. I'm implementing this concept and incorporating hub steps.

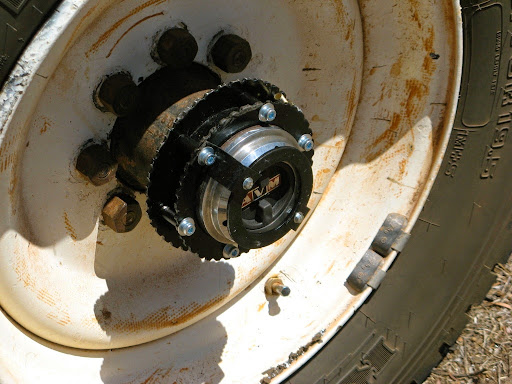

Prototype claw clamp/step ring retention method The final design incorporating non-slip step rings Hub step in operation with FWH retention ring The control lever is still accessible (CW to lock, CCW to unlock) In this design the clamp ring is a 2mm x 25mm steel band but the steps are 3mm aluminium plate because it's easier to work with and lighter. 3 steps rings could be used á la Oka, but I'm not sure the inner ring is very useful. Step ring and retention ring components The step rings are clamped either side of the steel clamp band by long bolts and spacers so they can't move laterally. A small bracket secures the rings to the clamp band bolt so they can't rotate. Secondly, in the event that the outer assembly does fall off without trace, or if its internal components fail, there is still a quick and easy way to engage 4wd as long as you have a few critical components available: Either a complete spare outer hub assembly (obviously) or,

• Parts from a failed outer hub assembly:
  • the aluminium frame (the alignment roll pins are not necessary and could be removed),
  • a locking ring,
  • the large spring, and
  • a few of the long screws.

These items can be recovered from previously failed hubs and/or are not heavy items to carry as spares.

Components needed to engage 4wd

To lock the hub into 4wd, insert the locking ring, bevelled edge first, into the inner hub gear and bolt the aluminium frame on to the hub, compressing the large spring between them. Only a minimum of 2 or 3 screws are required to hold the outer frame on since there's not a huge force against it, and in 4wd, all the hub components rotate together. Put some tape over the screw heads so they can't come loose.

This can be done in a few minutes since no wheel removal or jacking is required, and the centre hole on the frame can be covered by sticky tape to keep dust out.

Just a locking ring alone would suffice if you could engineer a way of holding it into the hub, eg screwing a plate or strip across the hub securing it with the long fixing screws, but if you've got a locking ring, you've probably also got an aluminium frame.

To revert to 2wd, remove the locking ring and spring and replace the aluminium frame.

The outer frame and spring push and hold the locking ring into the inner gear assembly, locking the hub

What other precautions can be taken?

The inner assembly is held in place by a large circlip which sits in a lipped groove in the hub, behind which is a bevelled edge prior to the internal splines. It is therefore possible and desirable to fit 2 circlips.

The groove is wide enough for 2 circlips to hold in the inner assembly

The reason is as follows. The locking ring begins to engage the inner gear when the spacing from the outer hub face to the inner gear face is about 6mm. This very close to the normal unlocked separation of the inner gear and locking ring, which is why a single broken tang can cause clicking. The long screws actually draw these faces together when tightened and anything that can increase the spacing minimises this problem. Fitting 2 circlips will achieve this.

It has been also suggested that the length of the splined shaft gear or location of the circlip groove can affect operation of the hub, but in my case, I could not see any way that the gear or shaft could impact the plastic components. The drive shaft position is controlled by the thrust surface on the rear of the wheel hub and the ends of the splines remain about 10mm from the control components. Of course replacement or other makes of drive shaft may have different lengths and the circlip maybe in different locations along the shaft.

If the central spline gear seems to be too long, don't fit the circlip on the splined shaft, it can't go far and the gear should still be held to the inner assembly by a rear circlip. Others have machined the gear shorter to allow fitting of the circlip but that depends on the length of the drive shaft which I assume might vary between makes.

Spare Parts

I have had around 3 or 4 failures of AVM hubs, all resulting from broken plastic parts, plus one lost outer assembly caused by screws working loose, and twice I've had to buy replacement sets. So I now have a stash of spare parts which can be re-assembled into useable spares.

My pile of AVM free wheeling hub spares, not including the 2 on the Oka   All the mechanical components are reusable, but very few of the plastic parts are On most of our trips I have had to do some repairs to the hubs so on our next desert trip I shall be taking:

• a complete outer assembly rebuilt out of spare parts,
• a complete inner assembly,
• 2 spare locking rings and large springs,
• a spare aluminium frame,
• several spare fixing screws (plus Allen/Torx keys),
• spare circlips (they can ping off and get lost), and
• spare plastic components (if AVM/Don Kyatt come good).

Disassembly or Repair of the Outer Hub Assembly

If you need or want to disassemble/reassemble the outer hub there are few things to be aware of.

The large round control lever is held to the grooved plastic cylinder by 2 thin clips on the back of the control lever (see pic). When these are assembled together, the locking ring and the spring are all held compressed (fully in Free and partially in Lock). Cover in the unlocked position (locking ring withdrawn):

To remove the control lever, use a round bar (I used a socket extension bar) held against the inside of the lever with the outer part of the cover resting on the open jaws of a vice or similar (wider than the control lever diameter), and give it a sharp tap. It should pop out and all the components can then be removed from the inside. (Note it's probably a good idea to oil the plastic parts on inside of the control lever a bit first so they disassemble smoothly).

Remember the order in which the plastic parts, springs and locking ring come out. The guide roll pins can be removed by pulling them out if they get in the way.

To reassemble the outer hub, note that the control lever has 2 slots on the rear which engage the 2 tabs protruding from the grooved cylinder. These tabs are not the same width and must be oriented correctly so the Lock/Free positions line up. Refer to the photo of plastic items above.

Also the grooved cylinder can be oriented in 3 different positions on the tangs on the sliding component (with the spring and locking ring attached) so ensure that it is correctly aligned so that when engaged with the operating lever, the Lock/Free positions are correct.

When the components are correctly aligned, holding them all compressed on to a solid surface, use a socket which will just fit inside the cylinder and tap it to engage the control lever clips. If one tap is not enough, check the alignment of the control lever with the grooved cylinder tabs.

Reinsert the guide pins and check the operation of the control lever.

Cover assembled in the locked position:

Note, each time this operation is done, or if the parts are not aligned properly, there is a risk of the plastic edges breaking away, eventually causing them to fail, so don't do this too often. I have successfully done this a few times, to construct a working outer hub from components from several failed hubs but they are not designed to be disassembled.

Oil the plastic parts lightly to minimise wear and allow them to slide smoothly.

Differences in Hub Design

When rebuilding a spare inner hub, I observed that there are difference in the design of the outer ring.

Both types are marked 439, which is the AVM part number for a hub to suit a Dana 60 internal mounting and 30 spline shafts.



Note the opening (not the spine gear) in the rear of the inner ring on the left is larger than the one on the right.

The inside diameter of the left hand gear is 50mm whereas the right hand one is only 49mm. Although it doesn't sound much, the inside surface of the outer ring, which rotates continuously with the wheel, is what supports the splined gear, which is stationary in 2wd, and 1mm can make a difference. On the larger ring, the spline gear almost falls through the hole.

I suspect the larger ones are early models since all our later models have been the 49mm size.



Both rings are stamped "439"

For reference, AVM also make a similar hub for 35 spline shafts, model 439K, which is the model recommended for the Oka NT and is listed in their catalog. The 30 spline model 439 is listed under Ford F350, Dana 60. The only difference between the 30 and 35 spline models is the central splined gear.
